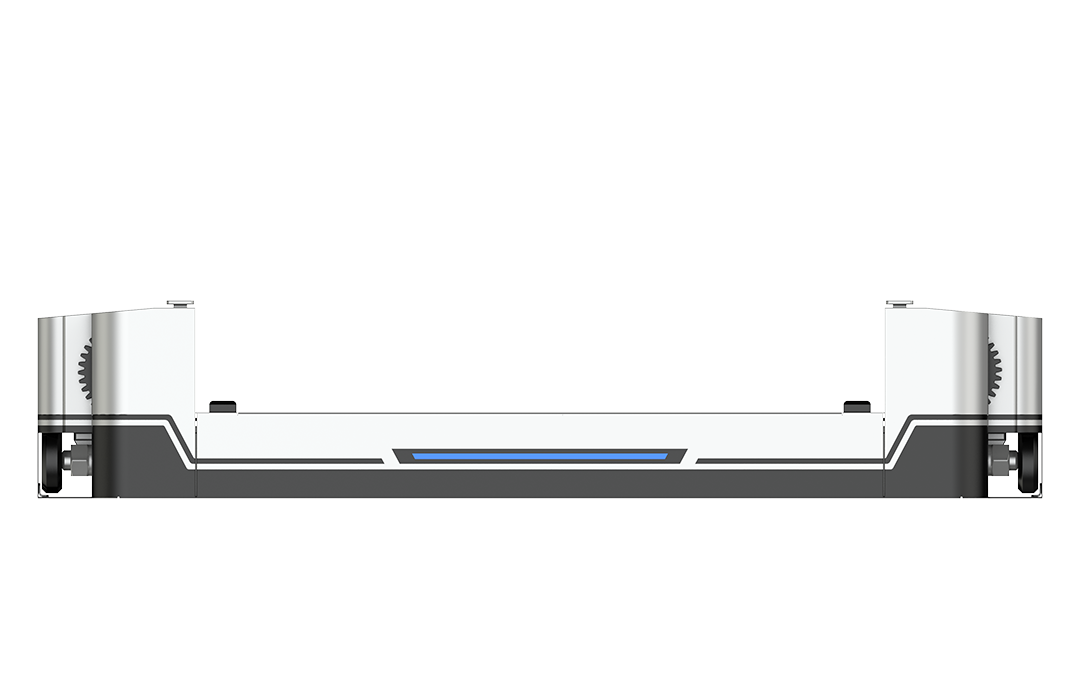

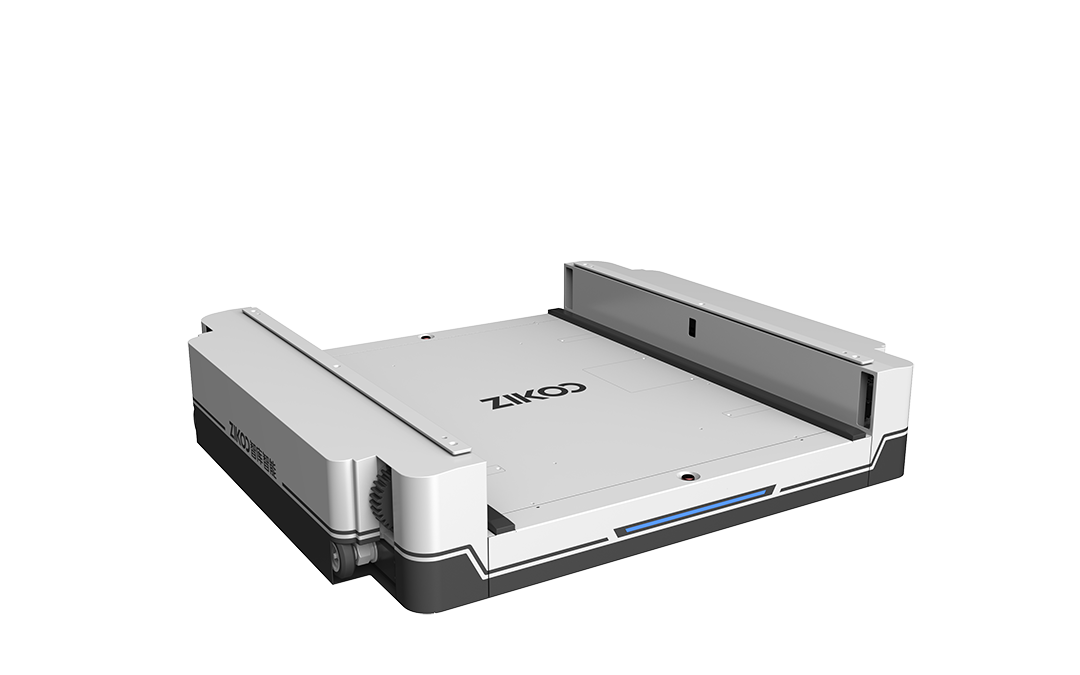

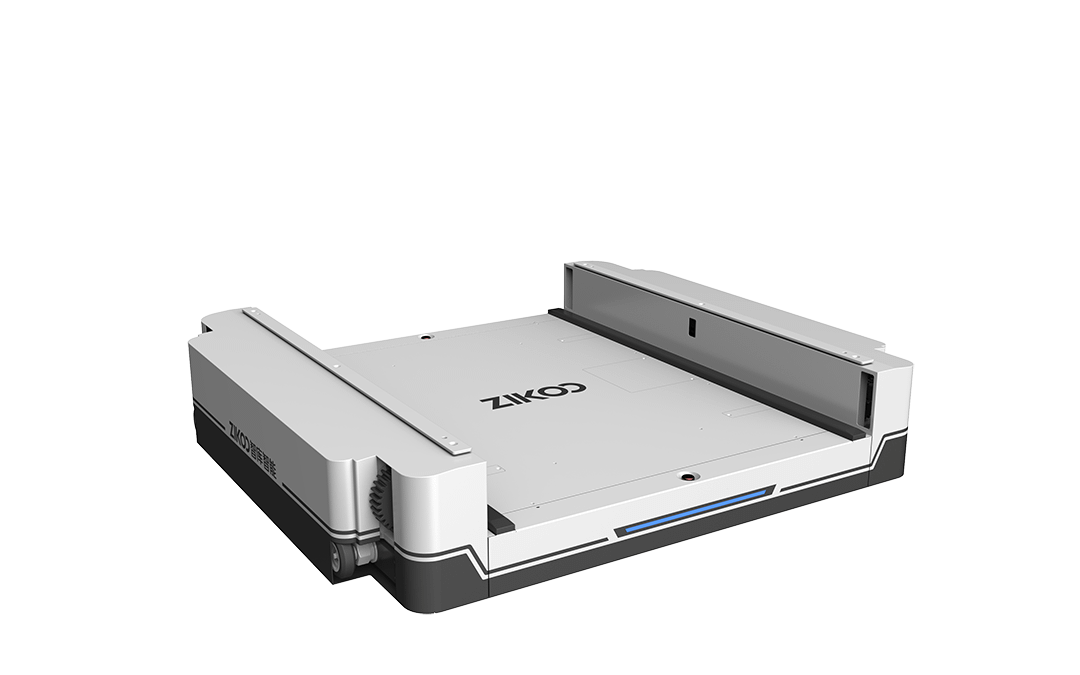

2-Way Vertical Shuttle
H-bot | Smart Vertical Shuttle
H1500SH ｜ H1500MH ｜ H1500LH｜ H2000XH
The H-bot 2-Way Vertical Shuttle is an intelligent warehouse robot designed for high-density “pallet-to-person” storage and storage-picking scenarios. The H-bot 2-Way Vertical Shuttle features a vertical lift, flexible layout, and fast delivery, providing efficient warehouse operations. It works seamlessly with the R-bot 4-Way Pallet Shuttle, enabling six-way shuttle driving to maximize space utilization. By replacing traditional elevators and conveyor lines, the H-bot 2-Way Vertical Shuttle offers a comprehensive solution for cost reduction and optimized warehouse space.
1800 KGRated load |
-25℃~45℃Applicable temperature |
1m/sMax lifting speed |
±1 mmPositing accuracy |
Technological Innovation
Streamlined design
Platform and modular design for high reliability
Scene Adaptation
Covering temperature environments from -25℃ to 45℃,and adapting to a variety of pallet sizes
Extreme speed
Empty load speed 1m/s, full load speed 0.3m/s
Empty load acceleration 2m/s², full-load acceleration 0.3m/s²
Ultimate space
Occupies only 1 cargo space for better space utilization
Accurate positioning
Rack and pinion drive, positioning accuracy ±1mm
Flexible Planning
Flexible deployment in any location inside or outside of the warehouse
Safety Protection
Multi-protection, electrical interlocks, overrun detection
Fast delivery
Dramatically reduced lead times with standard products delivered as soon as they are installed
Product Values
New Solution
Combined with the four-way shuttle , it becomes the all-new six-way shuttle
New Scenarios
Suitable for both high-density storage and picking-storage integration scenarios.
New Form
Replaces the elevator, no electrical debugging required, safe and reliable.
New Intelligence
Software-driven hardware, enabling remote delivery.
Advantage Comparison
Standardized product design, shorten the delivery cycle by more than 80%,
delivery cost is greatly reduced.

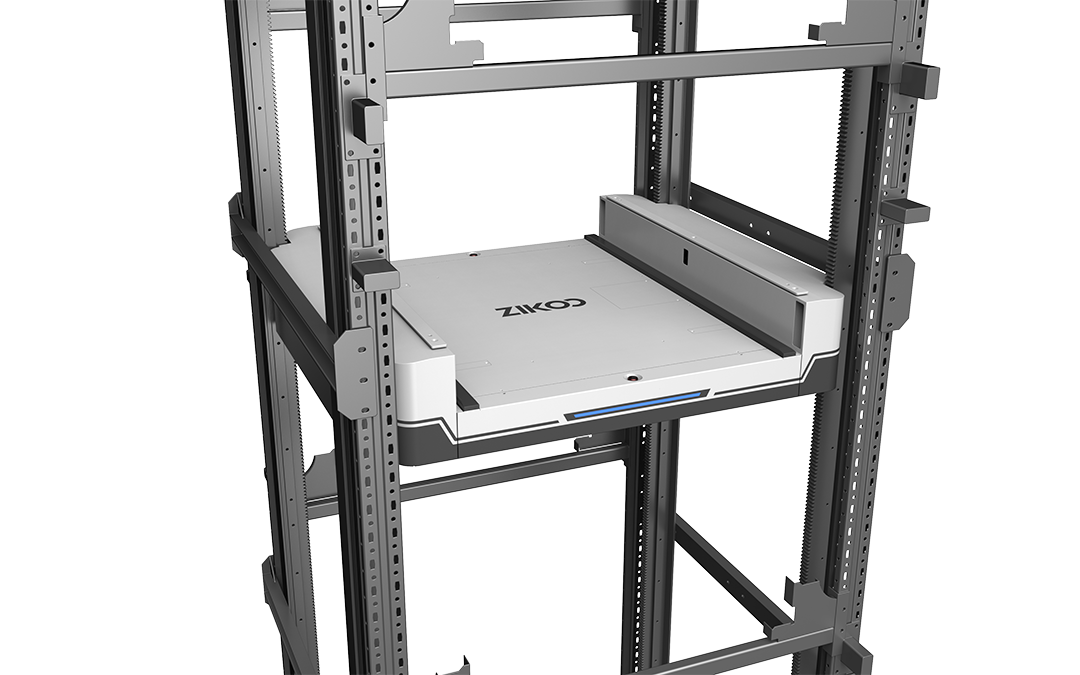

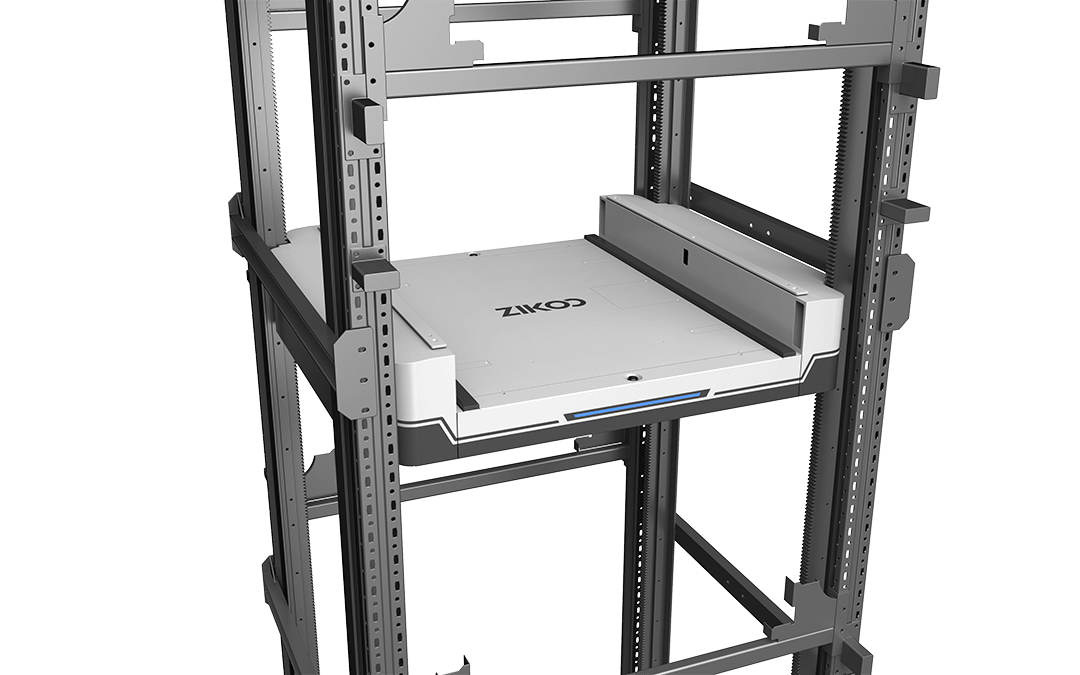

The outer frame borrows the rack column piece, the product cost is more than
30% lower than that of the elevator.
Occupying only one pallet position, reducing the number of
occupied spaces by more than 80%.
It can be deployed either embedded in the warehouse or external inside of
warehouse, which makes the program layout more flexible.
H-bot 2-way vertical shuttle product parameters
Weight
Rated load
Body dimensions
Applicable pallet sizes
Applicable temperature
Kg
Kg
mm
mm
℃
470
1800
L1423*W1090*H425
1200*800~1000
-15~45 | -25~0
470
1800
L1423*W1290*H425
1200*1000~1200
-15~45 | -25~0
470
1800
L1323*W1190*H425
1100*1000~1100
-15~45 | -25~0
490
2400
Customization
Customization
-15~45 | -25~0
Positioning accuracy
Empty/full load speed
Acceleration
mm
m/s
m/s²
±1
1/0.5
1/0.3
±1
1/0.5
1/0.3
±1
1/0.5
1/0.3
±1
0.8/0.4
1/0.3
Total power
Control mode
Transmission mode
KW
-
-
16
Servo
Rack and pinion
16
Servo
Rack and pinion
16
Servo
Rack and pinion
17.6
Servo
Rack and pinion
Certificate type
-
CE、UL
CE、UL
CE、UL
CE、UL
