Warehouses are under steady pressure to fit more inventory, move it faster, and keep costs in check. Traditional material handling often falls short, which creates bottlenecks and leaves storage underused. We focus on advanced automation that addresses these issues head-on, turning conventional warehouses into intelligent, high-performance logistics centers.
Understanding the Core Functionality of a Four-Way Shuttle System
1. Defining Four-Way Shuttle Technology in Modern Warehousing
A four-way shuttle is an intelligent robotic device for automated storage and retrieval of palletized goods inside dense racking. Unlike two-direction shuttles, these units move omnidirectionally (forward, backward, left, and right) within storage lanes. That reach lets them access any pallet position in block or deep-lane configurations, improving accessibility and flexibility. In most deployments, the technology integrates with a warehouse management system (WMS) and warehouse execution system (WES) to coordinate movements and optimize storage locations.
2. How Four-Way Shuttles Revolutionize Material Handling and Storage
Four-way shuttles reshape handling and storage by enabling pallet-to-person or goods-to-person automation. Forklifts no longer need to enter storage aisles, which narrows aisle requirements and raises storage density. Operating autonomously, the shuttles retrieve and deposit pallets at designated pick-up and drop-off points, streamlining the flow of goods to operators or other automated equipment. The result is less manual intervention, higher throughput, and fewer human errors.
3. Key Components and Operational Principles of Automated Shuttles
Automated shuttles, such as Zikoo’s R-bot, include a robust chassis, an electric drive system for movement, a lifting mechanism for pallet handling, and an onboard control unit with sensors for navigation and safety. The WMS/WES issues commands, the shuttle navigates to the specified location, picks up or drops off a pallet, then returns to a staging area or charging station. Multi-shuttle collaboration is integral, with multiple robots working on different levels or within the same aisle, orchestrated by a central control system.
The Unparalleled Advantages of Implementing Four-Way Shuttles
1. Maximizing Storage Density and Space Utilization with Intelligent Robotics
Four-way shuttles markedly increase storage density by supporting deep-lane and multi-level configurations. Their four-direction movement enables flexible rack designs that use every cubic foot of space. Facilities with limited floor area or high land costs benefit most, often deferring or avoiding expansion. We have observed that this intelligent use of space can increase storage capacity by up to 80% compared to conventional pallet racking.
You might also be interested in Breakthrough in Dense Storage: Four-Way Shuttles Double Your Space Efficiency.
2. Enhancing Operational Efficiency and Throughput in Logistics Centers
High-speed, autonomous operation lifts efficiency across picking, replenishment, and order consolidation, which shortens fulfillment times. Delivering pallets directly to workstations cuts operator travel, raising overall throughput. This efficiency is critical for e-commerce and retail operations that demand rapid order processing.
3. Reducing Labor Costs and Improving Workplace Safety with Automation
Automating material handling with four-way shuttles reduces dependency on manual labor for repetitive, strenuous work. That shift lowers labor costs and curbs risks associated with human-operated forklifts, improving safety. With fewer human-machine interactions in busy aisles, incidents decline, and personnel can focus on higher-value tasks.
4. Achieving Flexibility and Scalability for Evolving Warehouse Needs
Four-way shuttle systems are flexible and scalable by design. Operators can add or remove shuttles to match demand spikes, seasonality, or inventory changes without disrupting ongoing work. Modular architecture supports phased rollouts, allowing automation to scale over time. This adaptability keeps the warehouse aligned with business needs and protects long-term investments.
Diverse Applications of Four-Way Shuttles Across Industries
1. Optimizing Dense Storage in E-commerce Warehouses and Distribution Centers
E-commerce and distribution centers require high throughput and efficient space use to manage broad assortments and fast fulfillment. Four-way shuttles excel here by providing dense storage across many SKUs and enabling fast, accurate retrieval. They support efficient order picking strategies so products move quickly from storage to shipping. This helps meet the demanding delivery expectations of online consumers.
2. Enabling Specialized Storage for Cold Chain and Pharmaceutical Industries
Industries with strict temperature control, including cold chain logistics and pharmaceuticals, benefit significantly from four-way shuttle technology. Zikoo’s R-bot offers a Cold Chain Custom Solution with a -25℃ low-temperature dedicated lithium battery for continuous operation in harsh conditions. For new energy applications, a specialized solution avoids metal contamination by using stainless steel frames and all-rubber buffer wheels. These features support product integrity and compliance with industry regulations.
3. Streamlining Raw Material and Finished Product Handling in Manufacturing
Manufacturers rely on steady, accurate movement of raw materials and finished goods to maintain schedules and optimize inventory. Four-way shuttles provide high-density storage for components and finished items, ensuring timely delivery to production or outbound areas. Automation reduces manual handling, minimizes damage, and improves inventory accuracy, supporting just-in-time (JIT) principles.
4. Integrating with Vertical Systems for a Comprehensive Six-Way Shuttle Solution
The impact of four-way shuttles grows when paired with vertical transport systems. Zikoo’s R-bot works with the H-bot Vertical Bidirectional Shuttle to form a six-way shuttle system. This integration enables three-dimensional movement so pallets travel horizontally and vertically across multiple levels. The approach maximizes space utilization and throughput in complex, multi-story warehouse designs.
If you are interested, check Six-Way Shuttle System: Multi-Scenario Solutions Redefining Pallet Storage and Picking.
Zikoo’s R-bot Four-Way Shuttle: A Leading Solution for Pallet-to-Person Automation
1. Exploring the Advanced Features and Technical Specifications of the R-bot
The Zikoo R-bot Four-way Shuttle is a state-of-the-art intelligent warehouse robot designed for dense storage and pallet-to-person scenarios. It features a slim body (125 mm thickness) and offers flexible four-way movement, intelligent autonomous handling, and multi-shuttle collaborative operation. The R-bot comes in various models to accommodate different pallet sizes and load capacities, including standard, American, Japanese, and heavy-duty types.
| Model Option | Weight (kg) | Rated Load (kg) | Body Dimensions (L×W×H mm) | Supported Pallet Sizes (mm) | Empty Speed (m/s) | Loaded Speed (m/s) | Battery (V/Ah) | Continuous Operation (hours) |
|---|---|---|---|---|---|---|---|---|
| Standard Type (R1200B) | 270 | 1200 | 1000 × 972 × 125 | 1200 × 800–1000 | 1.6 | 1.2 | 51.2/40 or 30 | 8 |
| American Type (R1200A) | 265 | 1200 | 1192 × 840 × 125 | 1016 × 1219 | 1.6 | 1.2 | 51.2/40 or 30 | 8 |
| Japanese Type (R1500J) | 270 | 1500 | 1192 × 900 × 125 | 1100 × 1100 | 1.6 | 1.2 | 51.2/40 or 30 | 8 |
| Heavy-duty Type (R1500B) | 275 | 1500 | 1192 × 972 × 125 | 1200 | 1.6 | 1.2 | 51.2/40 or 30 | 8 |
| Heavy-duty Large Pallet Type (R2000B) | 400 | 2000 | 1250 × 1300 × 150 | 1400 | 1.35 | 1.0 | 51.2/40 or 30 | 7 |
2. Tailored Solutions: Cold Chain and New Energy Applications with the R-bot
Zikoo offers specialized R-bot solutions for demanding environments. The Cold Chain Custom Solution uses a low-temperature dedicated lithium battery that operates reliably down to -25℃, with a specialized charging port and PCBA coating for high-humidity conditions. The New Energy Custom Solution uses stainless steel frames and all-rubber buffer wheels, avoiding metals like copper, zinc, nickel, and lead to prevent contamination in sensitive manufacturing. These tailored designs deliver robust performance in specific industry contexts.
3. Seamless Integration with Zikoo’s H-bot for Enhanced Vertical Transport

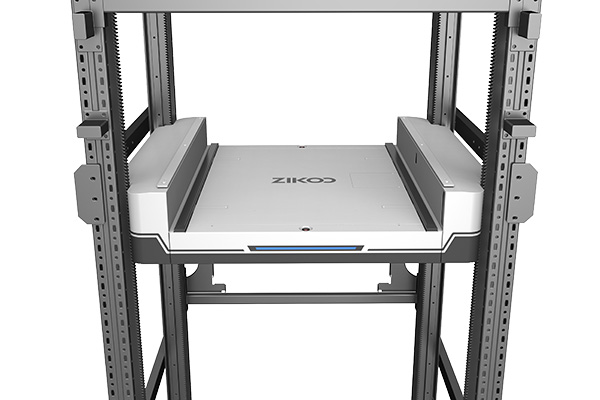

The R-bot’s capabilities are further extended through seamless integration with the Zikoo H-bot Vertical Bidirectional Shuttle. The H-bot serves as a vertical transportation hub, occupying only a single storage location while enabling efficient vertical movement. Together, the R-bot and H-bot create a three-dimensional warehousing network, allowing for six-way movement of pallets. This integration significantly enhances overall throughput and efficiency, making it a strong solution for complex storage needs.
Future Trends and the Evolving Role of Four-Way Shuttles in Smart Warehouses
1. The Impact of AI and Machine Learning on Shuttle System Performance
Artificial intelligence (AI) and machine learning (ML) will further raise four-way shuttle system performance. AI algorithms will optimize routing, task scheduling, and inventory placement in real time, adapting to changing demand patterns. ML models will predict maintenance needs to cut downtime and extend equipment life. These advancements will deliver greater efficiency, responsiveness, and reliability in automated warehouses.
2. Expanding Capabilities Through Multi-Robot Collaboration and IoT Integration
The next phase centers on expanded multi-robot collaboration and tighter integration with the Internet of Things (IoT). Shuttle fleets will communicate with one another, with vertical transport systems, and with equipment such as robotic arms and automated guided vehicles (AGVs). IoT sensors will feed real-time data on inventory, environmental conditions, and equipment status, creating a connected, intelligent warehouse ecosystem.
3. Addressing Sustainability and Energy Efficiency in Automated Storage Systems
Sustainability will weigh more heavily in automated storage decisions. Future four-way shuttles will prioritize energy efficiency through advanced batteries, regenerative braking, and optimized power management. Manufacturers will also emphasize recyclable materials and designs that extend service life to reduce environmental impact. These shifts align with broader goals for greener logistics operations.
Transform Your Warehouse with Zikoo Robotics
Are you ready to optimize your warehouse operations with cutting-edge four-way shuttle technology? Zikoo Smart Technology Co., Ltd. offers advanced pallet-to-person robotics and intelligent software solutions designed to maximize your storage density, enhance efficiency, and reduce costs. Contact us today to discuss your specific needs and discover how our R-bot Four-way Shuttle and integrated six-way shuttle systems can revolutionize your logistics. Reach out to us at [email protected] or call (+86)-19941778955.
FAQs
1. What is the primary benefit of using a four-way shuttle in a warehouse?
The primary benefit is a significant lift in storage density and operational efficiency. Omnidirectional movement enables flexible, compact layouts that maximize cubic space utilization. The result is faster throughput and lower operating costs.
2. How does a four-way shuttle differ from traditional automated guided vehicles (AGVs)?
A four-way shuttle differs mainly in movement and application. Shuttles operate inside racking, moving in all four directions to access deep-lane storage. AGVs usually transport goods across longer floor distances, following predefined paths or using navigation systems.
3. Can four-way shuttles operate in extreme temperatures, such as cold storage?
Yes. Specialized four-way shuttles can run in extreme temperatures, including cold storage. Zikoo’s R-bot offers a Cold Chain Custom Solution with a dedicated low-temperature lithium battery and enhanced safety features for operations down to -25℃.
4. What kind of integration is possible between a four-way shuttle and other warehouse automation systems?
Four-way shuttles integrate smoothly with vertical bidirectional shuttles (like Zikoo’s H-bot) to form six-way shuttle systems, as well as with conveyors, robotic arms, and warehouse management software (WMS/WES/WCS/RCS). This creates an intelligent, interconnected logistics network.
5. How do four-way shuttles contribute to improving overall warehouse efficiency and ROI?
They raise efficiency by increasing storage density, accelerating throughput, and reducing manual labor. That combination lowers operating costs, reduces errors, and improves order cycle times. High space utilization and scalability support strong ROI by optimizing existing infrastructure and accommodating future growth.
